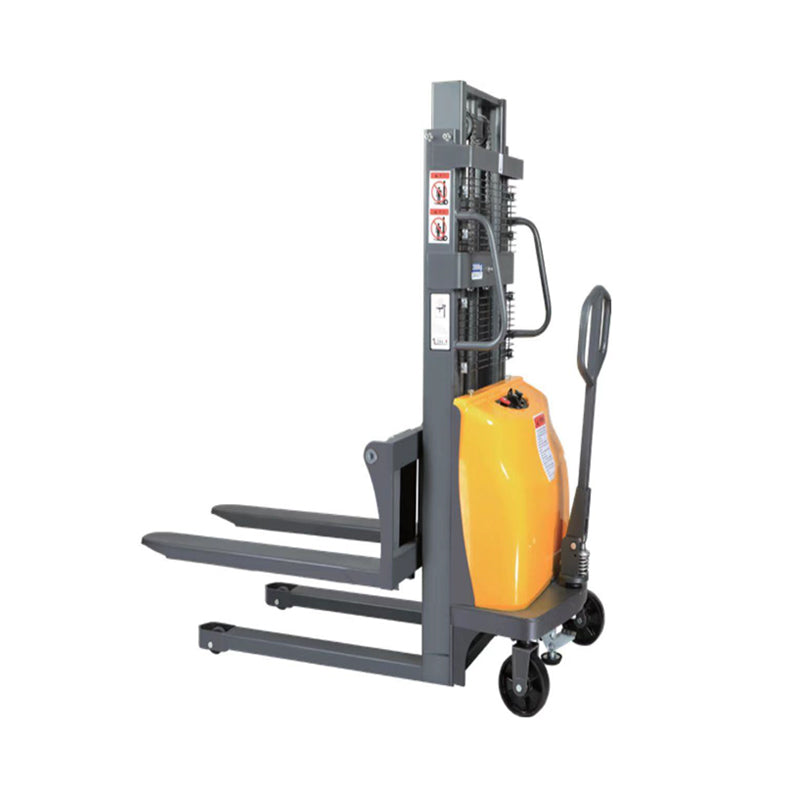

BDD Series - Semi-Electric Stacker
Load image into Gallery viewer, BDD Series - Semi-Electric Stacker

BDD Series - Semi-Electric Stacker

2 sold in last 8 hours
spotgomall
BDD10/15/20
In stock
$399.99
Application technology features: The steel plate link steering is strong and durable. The explosion-proof valve ensures...
$399.99
customers are viewing this product
BDD Series - Semi-Electric Stacker
Description

Application technology features:

  • The steel plate link steering is strong and durable.
  • The explosion-proof valve ensures the platform descends smoothly and protects the operator's safety.
  • The fork can be adjusted to the same height as the outrigger.
  • The foot brake is easy to operate.




Technical Configuration Parameters Table:

Model

Unit

 CBD20/25/30/40

Drive mode: Electric (battery), diesel, gasoline, gas


Manual
Driving mode (manual, walking, standing, sitting, picking)

Q(kg)

1000/1500/2000

Load center distance

c(mm)

500

Front overhang

Y(mm)

745

Wheelbase

kg

1185

Weight (with battery)


380/400/440

Wheel


Nylon wheel

Wheel size, front


180*50

Wheel size, rear


80x70

Wheels, front and rear number (x = driving wheel)


2/2

Front wheel track

b10(mm)

700

Rear wheel track

b11(mm)

410/525

Lifting height

h1(mm)

1600/2000/2500/3000/3500

Height when mast is retracted

h3(mm)

2090/1590/1840/2090/2340

Maximum height of mast during operation

h4(mm)

2100/2500/3000/3500/4000

Lowered height

h13(mm)

90

Overall length

l1(mm)

1860

Fork face length

l2(mm)

1100

Body width

bl(mm)

 800
Fork size S/e/l(mm) 50x160x1100
Fork outer width, b5(mm) 320-1030
Wheelbase center ground clearance m2(mm) 40
Aisle width, pallet 1000x1200 (1200 across fork placement) Ast(mm) 2305
Aisle width, pallet 800x1200 (1200 placed along the fork) Ast(mm) 2258
Turning Radius Wa(mm 1425
Lifting speed, full load/no load m/s 0.08/0.1
Lowering speed, fully loaded/unloaded m/s 0.12/0.09
Service brake Mechanical brake
Increase motor power kw 1.6
Battery 12V AH 120
Battery weight kg 43
Battery size (length x width x height) mm 376*188*320
The noise level at the driver's ear complies with DIN12053 dB(A) <=70
