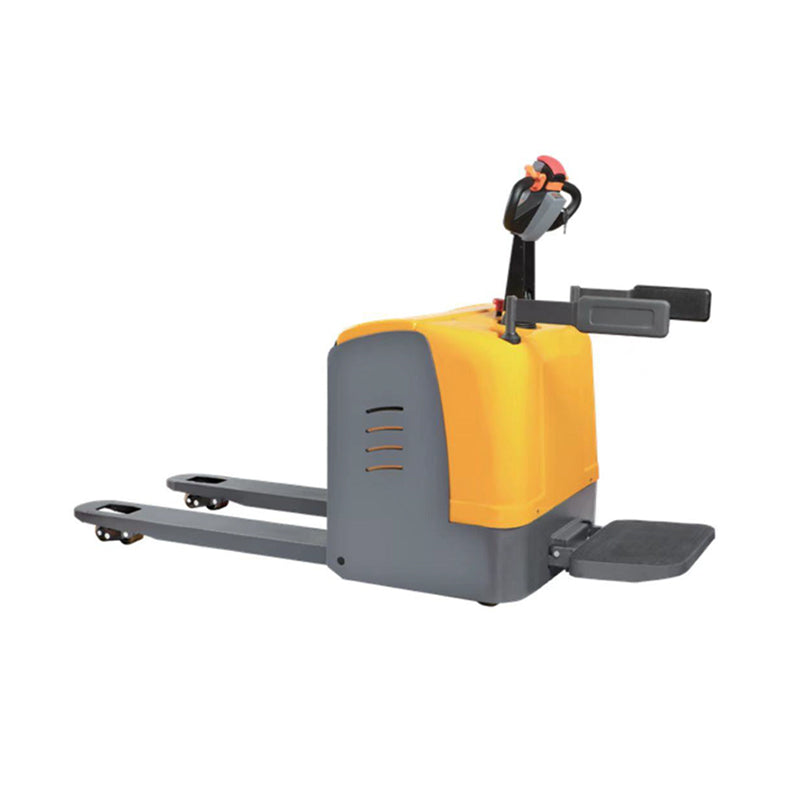

CBD Series-Fully Electric Truck
Load image into Gallery viewer, CBD Series-Fully Electric Truck

CBD Series-Fully Electric Truck

2 sold in last 8 hours
spotgomall
CBD15/20/25/30140
In stock
$699.99
Application technology features: The handlebar is equipped with an emergency reverse switch, which makes the vehicle...
$699.99
customers are viewing this product
BDD Series - Semi-Electric Stacker
BDD Series - Semi-Electric Stacker
$399.99
CDD Series - Fully Electric Pallet Stacker
CDD Series - Fully Electric Pallet Stacker
$799.99
CBD Series-Fully Electric Truck
Description

Application technology features:

  • The handlebar is equipped with an emergency reverse switch, which makes the vehicle operation safer
  • Power display and working time display;
  • Emergency power off switch;
  • Turtle-shaped slow driving switch; Stepless speed control;
  • Spring adjustment structure balance wheel is wear-resistant and stable;
  • AC motor, no need to replace carbon brushes, has good ramp starting performance, etc.;
  • The entire drive unit has a small turning radius, and wheel replacement and maintenance are simple and convenient;
  • The motor has better dust and water resistance, making the brake and motor more durable and reliable;
  • The standing pedal has good shock absorption effect, comfortable operation, and not easy to get tired.
  • Lubricating oil nozzles and bushings are added to the rotating shaft to facilitate users to better maintain the car;
  • The sturdy steel shell is easy and simple to open, and easy to maintain and repair.
  • Optional electric steering




Technical Configuration Parameters Table:

Model

Unit

 CBD20/25/30/40

Rated load

Kg

2000/2500/3000/4000
Driving style


Stand

Load center distance

mm(c)

600

Front overhang

x(mm)

815/865/935

Track

Y(mm)

1211/1261/1331

Weight (with battery)

kg

540

Axle load, front/rear axle fully loaded

kg

1080/1460

Axle load, front/rear axle fully loaded

kg

470/170

wheel


Polyurethane wheels

Wheel size, front

mm

250*80

Wheel size, rear

mm

80*70

Wheels, front and rear number (X = driving wheel)


1x+2/4

Front wheel track

(b10)mm

580

Rear wheel track

(b11)mm

340/370/470/505

Lifting height

h3(mm)

205

Lowering height

H13mm

85

Minimum/maximum height of operating handle in driving position

h14(mm)

1042/1295

Overall length

l1(mm)

1780/1830/1900

Fork face length

l2(mm)

1200

Fork size

S/e/l(mm)

65*180*1200(1200-3000)

Body width

bl(mm)

805

Fork outer width

b5(mm)

550/685

Wheelbase center ground clearance

m2(mm)

40

Aisle width, pallet 1000x1200 (1200 across fork placement)

Ast(mm)

2100/2400

Aisle width, pallet 800x1200 (1200 placed along the fork)

Ast(mm)

2080/2100

Turning Radius

Wa(mm)

1482/1608/167

Travel speed, fully loaded/unloaded

Km/h

4.5/6.2

Lifting speed, full load/no load

m/s

0.03/0.04

Lowering speed, fully loaded/unloaded

m/s

0.05/0.045

Maximum climbing capacity, fully loaded/unloaded

%

5/12

Service brake


Electromagnetic brake

Drive motor power

kw

1.5

Increase motor power

kw

2.2

Battery 24V

AH

120/130
